250 KVA stainless steel water tank seam welding machines with liftable upper arm
1. Specification of 250 KVA stainless steel water tank seam welding machines
|
Rated power |
250KVA |
|
Voltage |
380 V, 50 HZ, 415 V, 50 HZ or customization |
|
Welding thickness |
Max. 1.5 mm+1.5 mm thick stainless steel |
|
Welding diameters |
680 mm – 2300 mm |
|
Arm length |
1800 mm |
|
Dimensions |
2910 mm * 1100 mm * 2650 mm |
|
Weight |
1250 KGS |
|
Welding heads |
Both for linear & circular welding |
2. Characteristics of 250 KVA stainless steel water tank seam welding machines
|
Machines |
Input currents |
Output currents |
Power supply needed |
Remark |
|
welding machine with inverter |
20 (3 phases) |
120 |
20 |
It saves at least 30% electricity.3 pcs 16mm2 for live wire & 1 pc 3 mm2 for null wire |
|
welding machine without inverter |
120 (3 phase) |
120 |
60 |
It affects other machines in the same power grid. 3 pcs 35mm2 for live wire & 1 pc 4 mm2 for null wire |
⑴ It requires a small power of transformer and save at least 30% power consumption.
Check the welding currents between the stainless steel tank welding machines with & without inverter

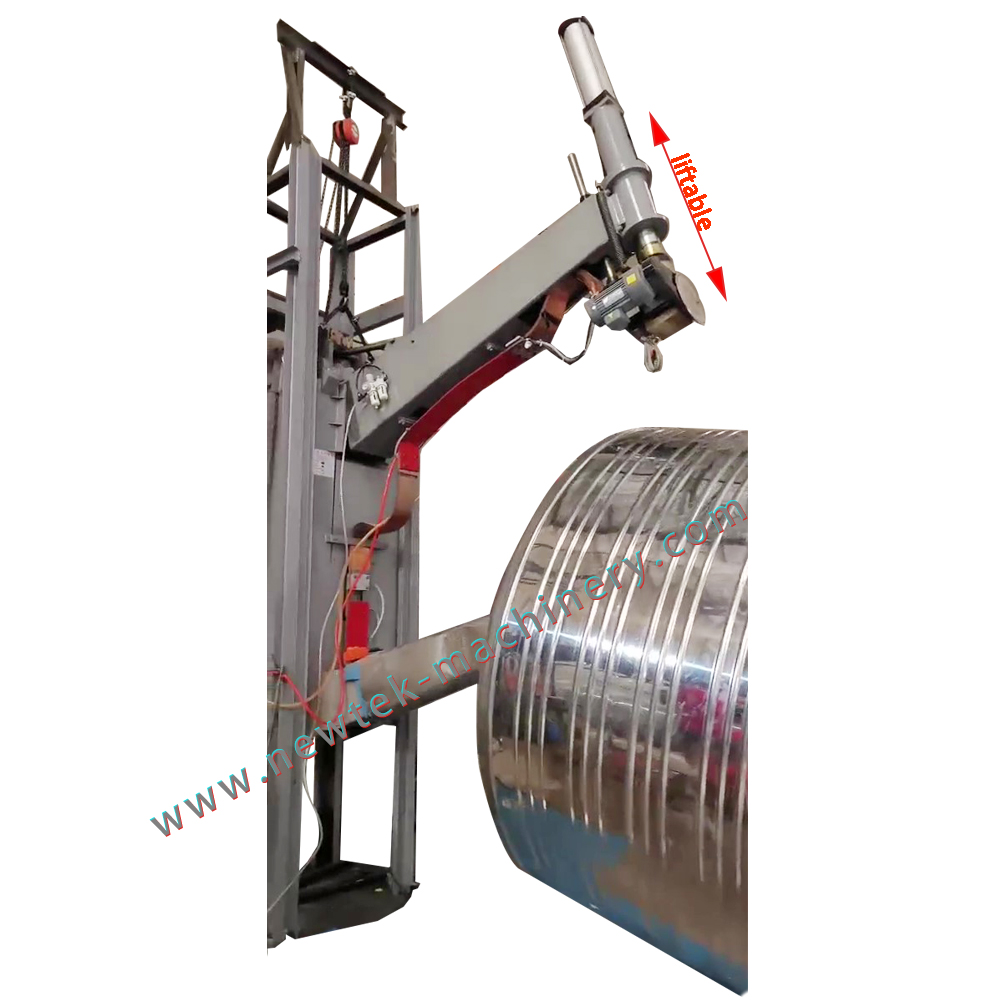

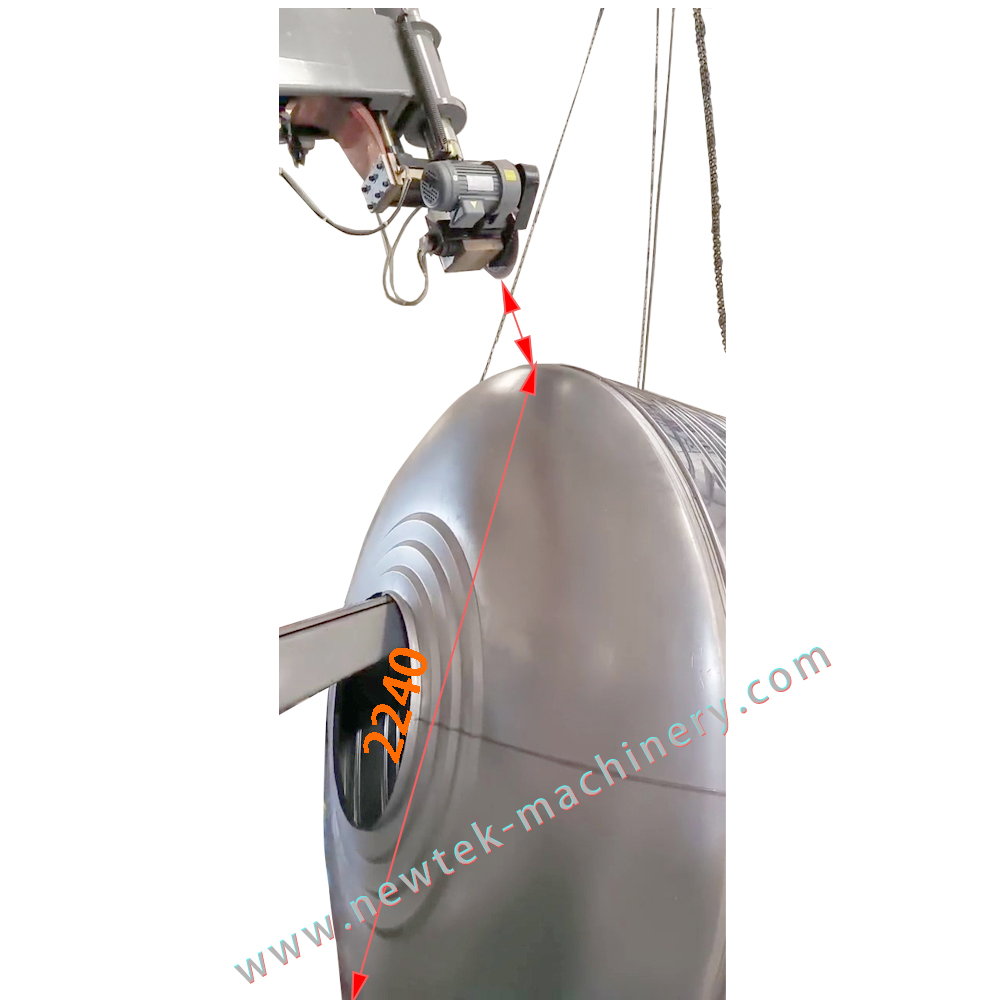

(2) The upper arm of can come up and down to weld the super big tank. Take a look at how big a tank it can weld
(3) Function of inverter controller for 3 or more layers overlaps
The above welding includes DC one and AC one. The first sector is for 3 layers or more overlaps. The DC welding time can be set.
When making the stainless steel water tanks, please start at the overlap.
Both stainless steel water tank welding machines with/without inverter controller can make the pretty fish scale type welding as the above shows
(4) With inverter controller, It still can run well under unstable voltage and it doesn't affect other machines in the same grid.
-
