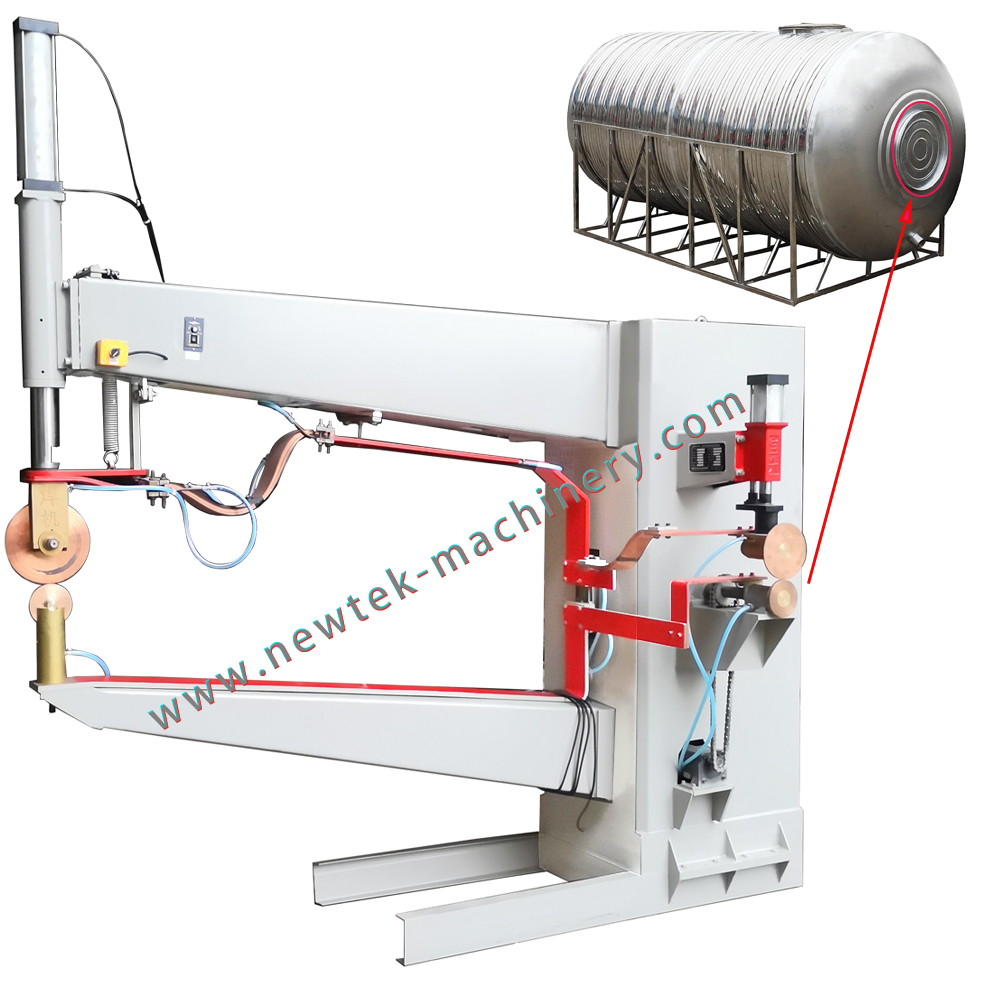

180 KVA Stainless Steel Water Tank Welding Machines with Two Welding Heads with/without Inverter Controller
1. Specification
|
Rated power |
180KVA |
|
Voltage |
380 V, 50 HZ, 415 V, 50 HZ or customization |
|
Welding thickness |
1 mm+1 mm thick stainless steel |
|
Welding diameters |
680 mm – 2300 mm |
|
Arm length |
1800 mm |
|
Dimensions |
2400 mm * 800 mm * 3300 mm |
|
Weight |
1010 KGS |
|
Welding heads |
Both for linear & circular welding |
2.Characteristics
⑴ It requires a small power of transformer and save at least 30% power consumption.
|
Machines |
Input currents |
Output currents |
Power supply needed |
Remark |
|
welding machine with inverter |
20 (3 phases) |
120 |
20 |
It saves at least 30% electricity.3 pcs 16mm2 for live wire & 1 pc 3 mm2 for null wire |
|
welding machine without inverter |
120 (3 phase) |
120 |
60 |
It affects other machines in the same power grid. 3 pcs 35mm2 for live wire & 1 pc 4 mm2 for null wire |
-
How to Make Stainless Steel Water Tanks
How to make stainless steel water tanks with our machines? There are 7 steps.
넶569 2022-05-31 -
What are the advantages of your welding machines for stainless steel water tanks?
There are our own technology and designs on our welding machines for stainless steel water tanks and others. Ourselves-made inverter controllers make the welding machines save at least 30% electricity.
넶299 2022-06-07 -
How to make insulated stainless steel water tanks
Insulated stainless steel tanks are used to keep water warm or cool. Then how to make them by our machines?
넶234 2022-06-07 -
What are the difference between ordinary non-inverter AC welding machine and our inverter controlled ones?
This article is to let you know more about our inverter controlled welding machines
넶77 2022-06-08
