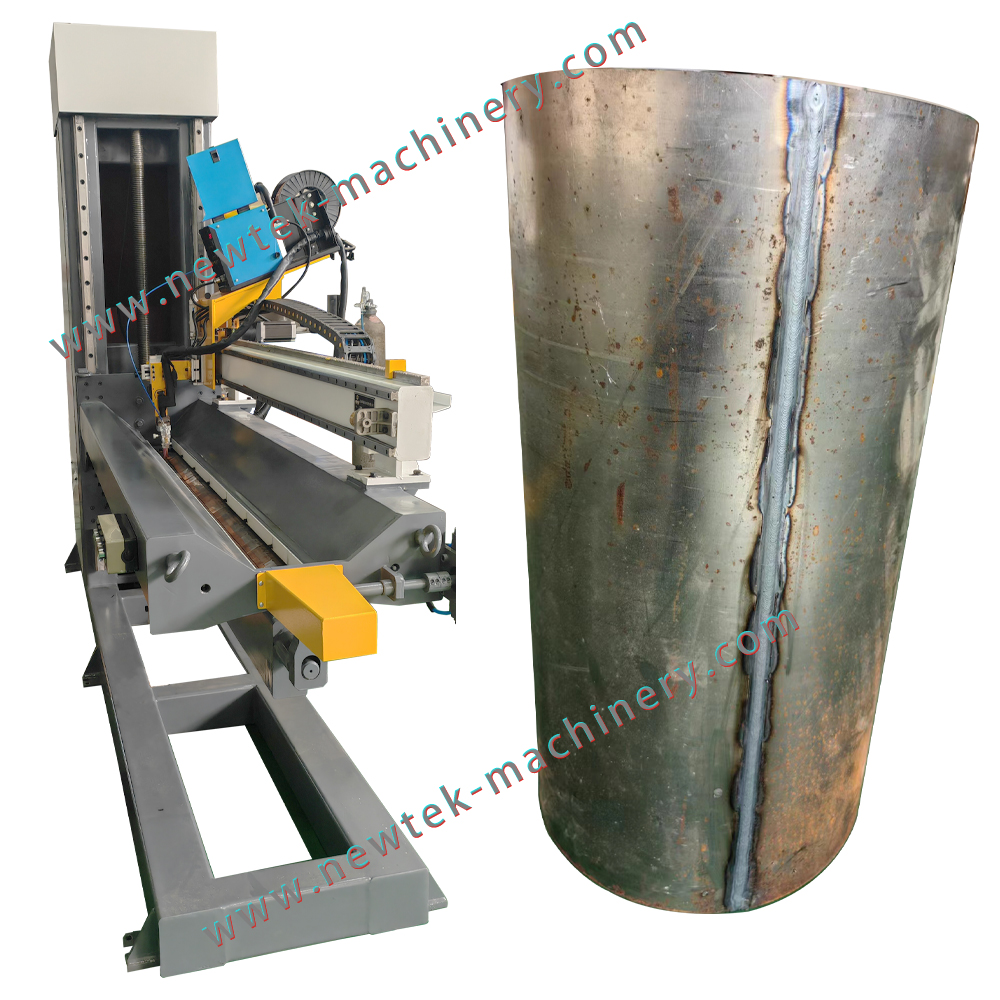

直缝焊机主视图-水印-2

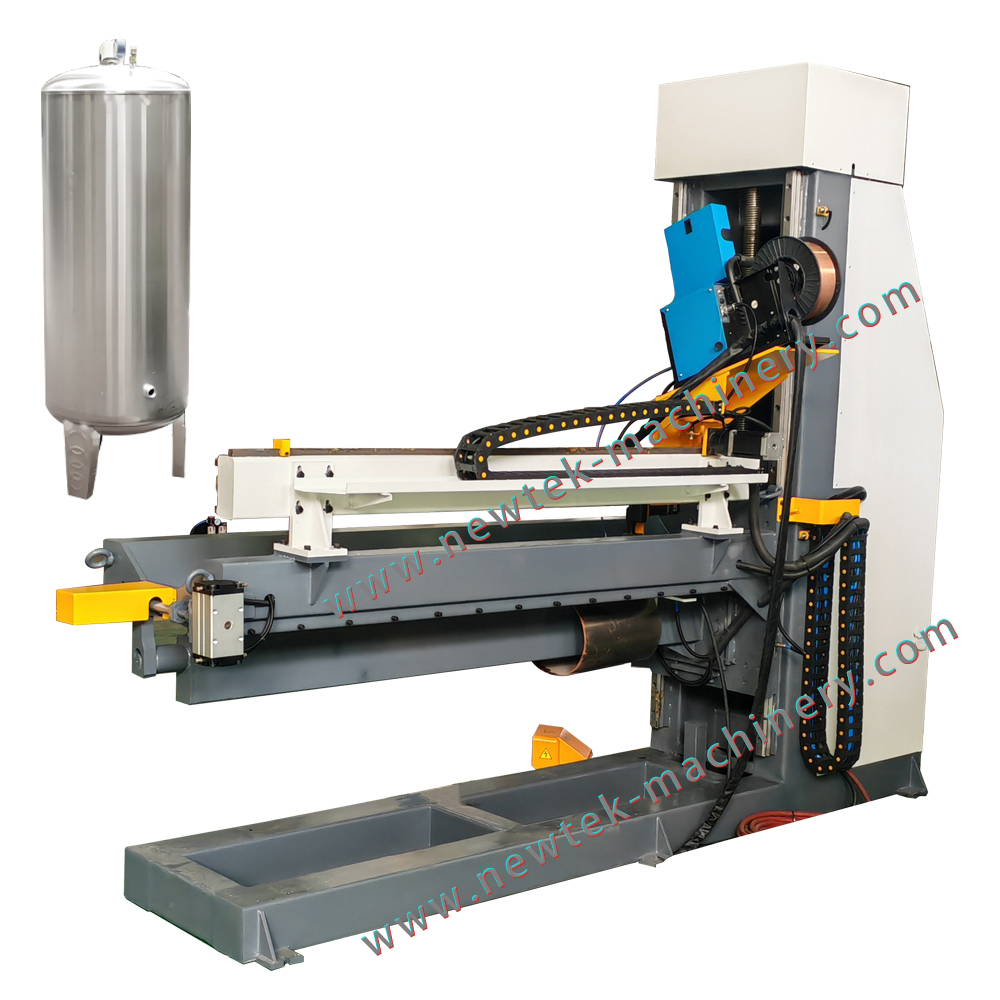

直缝焊机背2

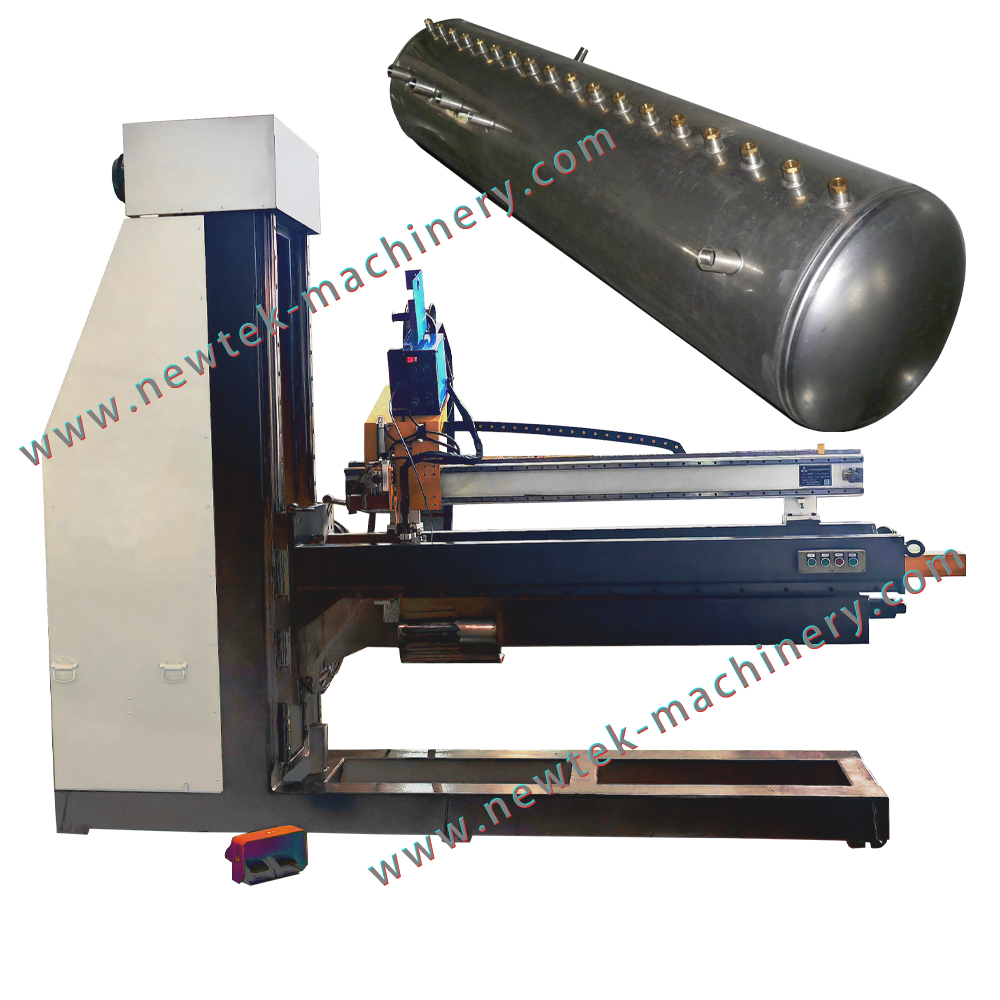

直缝焊机纵视图-MIGtank-水印

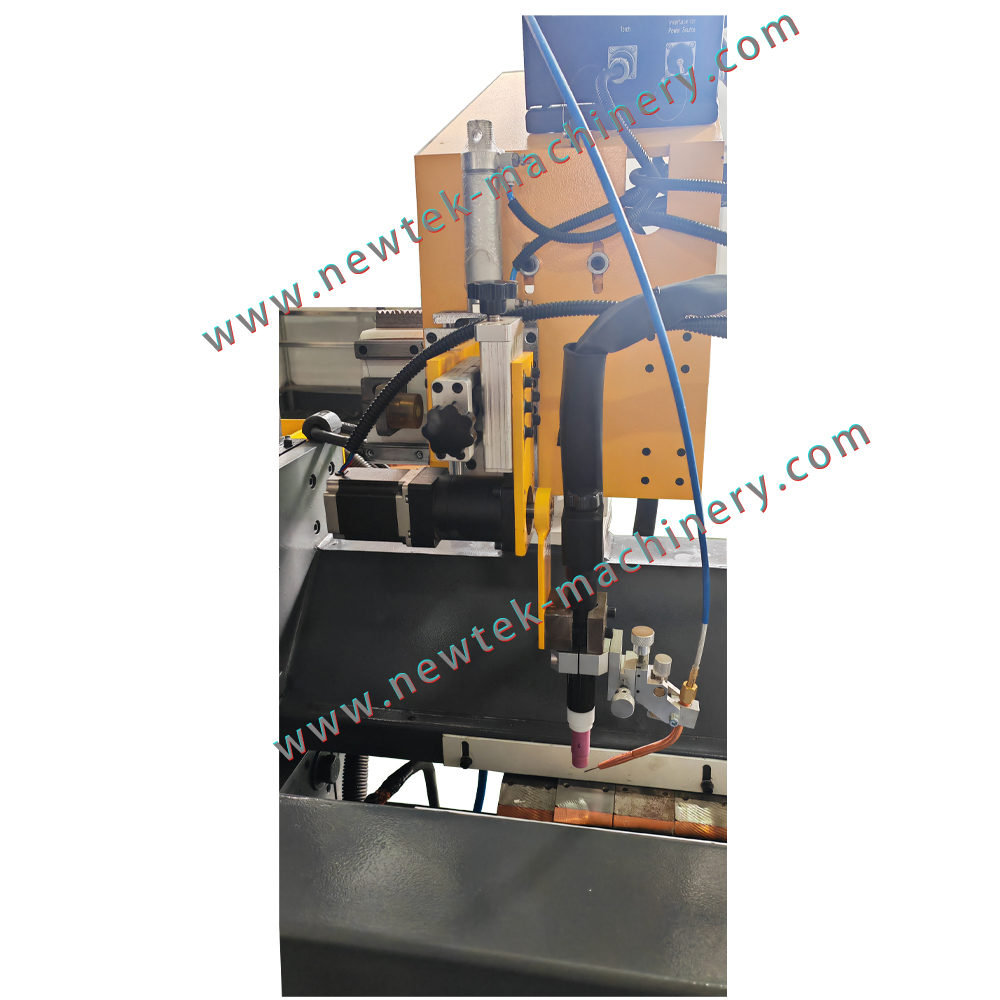

直缝焊机焊枪-水印
넳 넲

Adjustable linear seam welding machines for non-pressurized & pressurized tanks

Adjustable linear seam welding machines are used to weld the linear seam of non-pressurized & pressurized tanks. Their heights are adjustable according to the diameters of tanks and the welding types are optional according to the thickness of the tank body from 0.5mm- 6mm.
ꄴPrevious： Circular seam welding machines for tanks, hydrocylinders, piston rods, air compressors, extinguishers, transmission shafts, dampers, mufflers, flanges
ꄲNext： 250 KVA stainless steel water tank seam welding machines with liftable upper arm

1. Specification of adjustable linear seam welding machines for non-pressurized & pressurized tanks

Models Workpieces

Rated capacity

(kw)

Range of

compressed air

(mpa)

Voltage

(v/hz)

TKS

(mm)

Length

(mm)

Dia.

(mm)
NTLS-500 0.5-6

≤500

 80-1600 0.15-6.5 0.2-0.6

AC380/50

Customized
NTLS-800 0.5-6

≤800

 120-1600 0.15-6.5 0.2-0.6

AC380/50

Customized
NTLS-1000 0.5-6

≤1000

 140-1600 0.15-6.5 0.2-0.6

AC380/50

Customized
NTLS-1200 0.5-6

≤1200

 140-1600 0.15-6.5 0.2-0.6

AC380/50

Customized
NTLS-1500 0.5-6

≤1500

 200-1600 0.15-6.5 0.2-0.6

AC380/50

Customized
NTLS-2000 0.5-6

≤2000

 300-1600 0.15-6.5 0.2-0.6

AC380/50

Customized
NTLS-3000 0.5-6

≤3000

 300-1600 0.15-6.5 0.2-0.6

AC380/50

Customized
can be customized



2. Characteristics of adjustable linear seam welding machines for non-pressurized & pressurized tanks

(1) The working table can be moved up and down to meet the diameters of the non-pressurized & pressurized tanks. Take a look at the video as follows:

(2) The welding types are optional according to thickness of tank sheets. The welding types can be TIG (Tungsten Inert Gas), MIG (Metal Inert Gas), MAG (Metal Active Gas), PAW (Plasma Arc Welding), LAW (Laser Arc Welding).

(3) The welding is taken automatically and it doesn't require the wokers have any welding skills.

(4) One worker is enough to operate it.

(5) There is no overlap and It is good for tank lids welded onto tank body.

(6) adjustable linear seam welding machines can be used to make tanks of solar water heaters, heat pumps, fire extinguishers, air compressors, water storage tanks, pressurized vessels.

3. Take a look at the welding video of adjustable linear seam welding machines for non-pressurized & pressurized tanks as follows:
