Vertical Stainless Steel Water Tank Covers

Our vertical stainless steel water tank covers are all well designed and scientifically manufactured.  There is no wrinkle, no damage. We are continuously supplying them to our internal market and abroad.
ꄴPrevious： Manholes & caps for horizontal stainless steel water tanks
ꄲNext： null

1. Specification of vertical stainless steel water tank covers

Diameters

(mm)

 Materials

Thickness

(mm)

Caps

（mm）

Manhole

(mm)

According

Capacity

(L)
600 stainless steel 304-2B, 304BA, 316 0.3, 0.4, 0.5, customization 420 390
610 0.3, 0.4, 0.5, customization 420 390
630 0.3, 0.4, 0.5, customization 420 390
660 0.4, 0.5, customization 420 390
670 0.4, 0.5, customization 420 390
690 0.4, 0.5, customization 420 390
700 0.4, 0.5, customization 420 390 500
720 0.4, 0.5, customization 420 390 500
750 0.4, 0.5, customization 420 390
760 0.4, 0.5, customization 420 390
780 0.4, 0.5, customization 420 390
800 0.4, 0.5, customization 420 390
830 0.4, 0.5, customization 420 390
850 0.4, 0.5, customization 420 390
900 0.4, 0.5, customization 420 390
920 0.4, 0.5, customization 420 390
930 0.4, 0.5, customization 420 390
960 0.4, 0.5, customization 420 390 1000
970 0.4, 0.5, customization 420 390 1000
980 0.4, 0.5, customization 420 390 1000
1020 0.4, 0.5, customization 420 390 1000
1030 0.4, 0.5, customization 420 390
1050 0.4, 0.5, customization 420 390
1080 0.4, 0.5, customization 420 390
1110 0.4, 0.5, customization 420 390
1200 0.4, 0.5, customization 420 390
1230 0.4, 0.5, customization 420 390
1280 0.5, 0.6, customization 420 390
1300 0.5, 0.6, customization 420 390
1360 0.5, 0.6, customization 450 430 3000
1400 0.5, 0.6, customization 420 390 2000
1460 0.6, 0.7, customization 450 430
1500 0.6, 0.7, customization 570 530
1560 0.6, 0.7, customization 570 530 4000/5000
1600 0.6, 0.7, customization 570 530
1700 0.6, 0.7, customization 570 530
1800 0.7, 0.8, customization 570 530
1900 0.7, 0.8, customization 570/700 530/610
2140 0.8, 1, customization 700 610
2240 0.8, 1, customization 700 610 10000



(1)There are other diameters of vertical stainless steel water tank covers

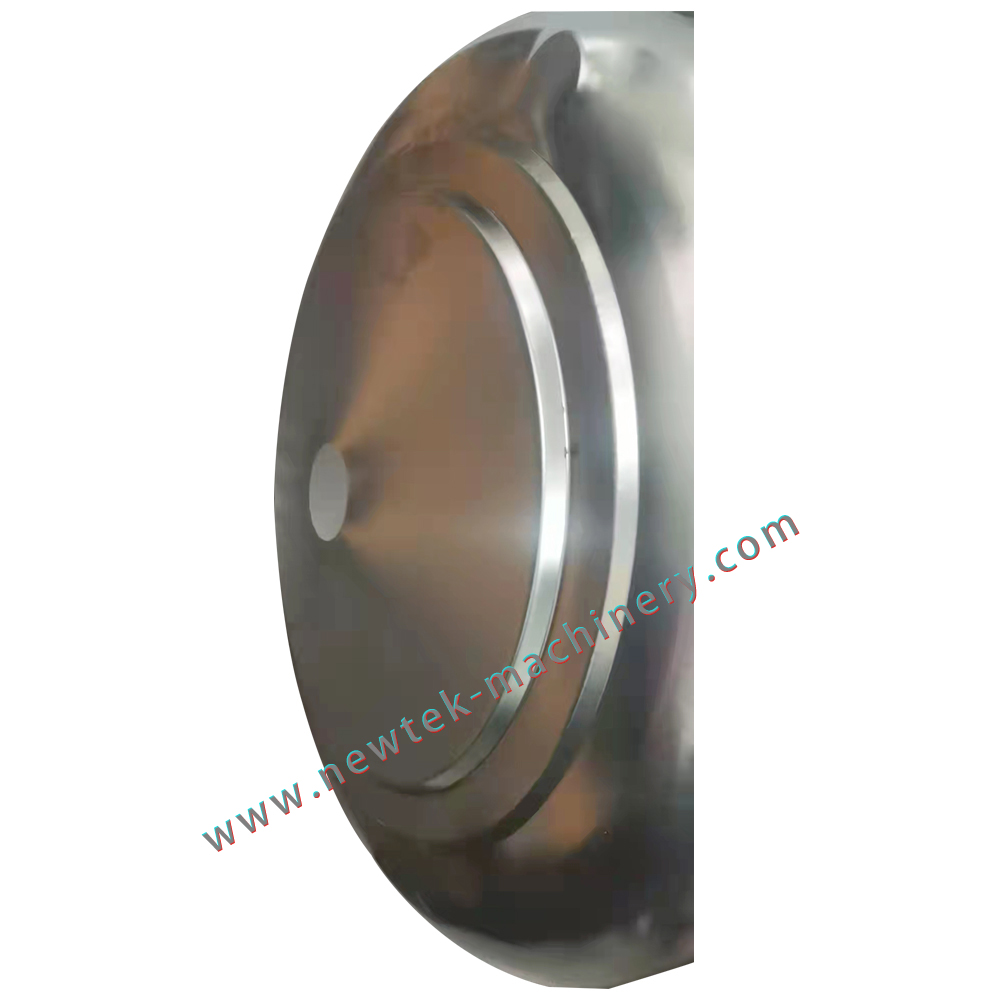

(2)The bottom stainless steel water tank covers can be made as the below photos show to drain the water completely.

stainless steel water tank covers with complete drainage

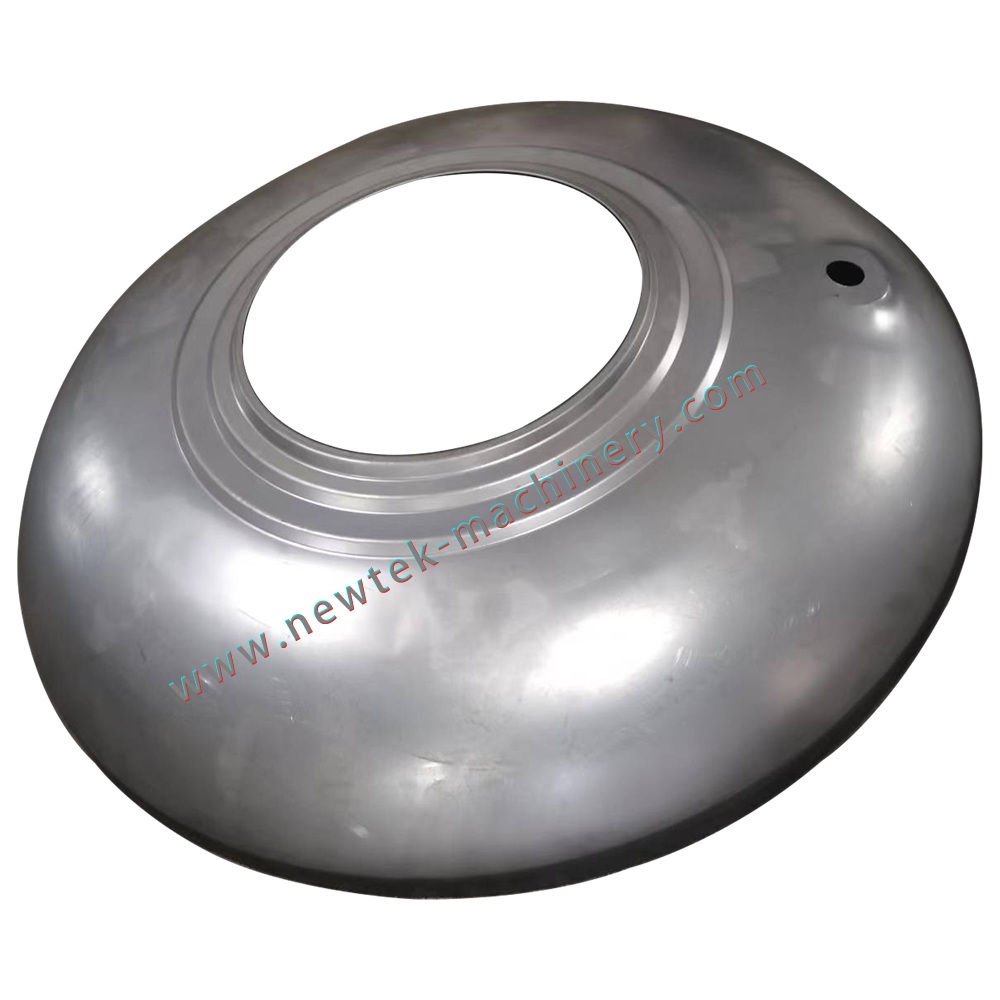

(3) The maximum diameter of stainless steel water tank covers without any joints is 1400 mm. The ones with joints can be cheaper. Take diameter 1360 stainless steel water tank covers as an example to show how they look:

1360 stainless steel water tank covers without any joints

1360 stainless steel water tank covers with joints

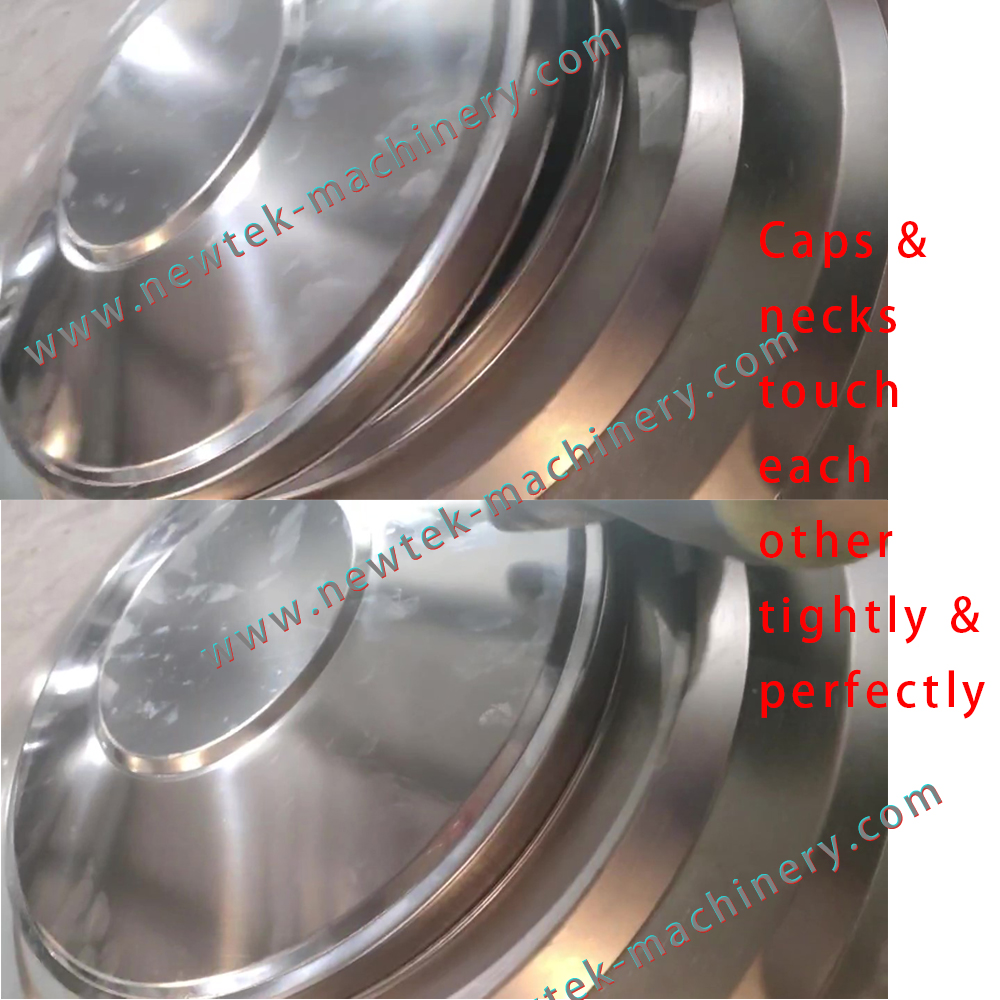

(4) The manholes on the stainless steel water tank covers can be made to match the caps well and there is no any movements between them. The maximum diameter of this type is 1400 mm.

the caps and the manholes of stainless steel water tank covers match each other well

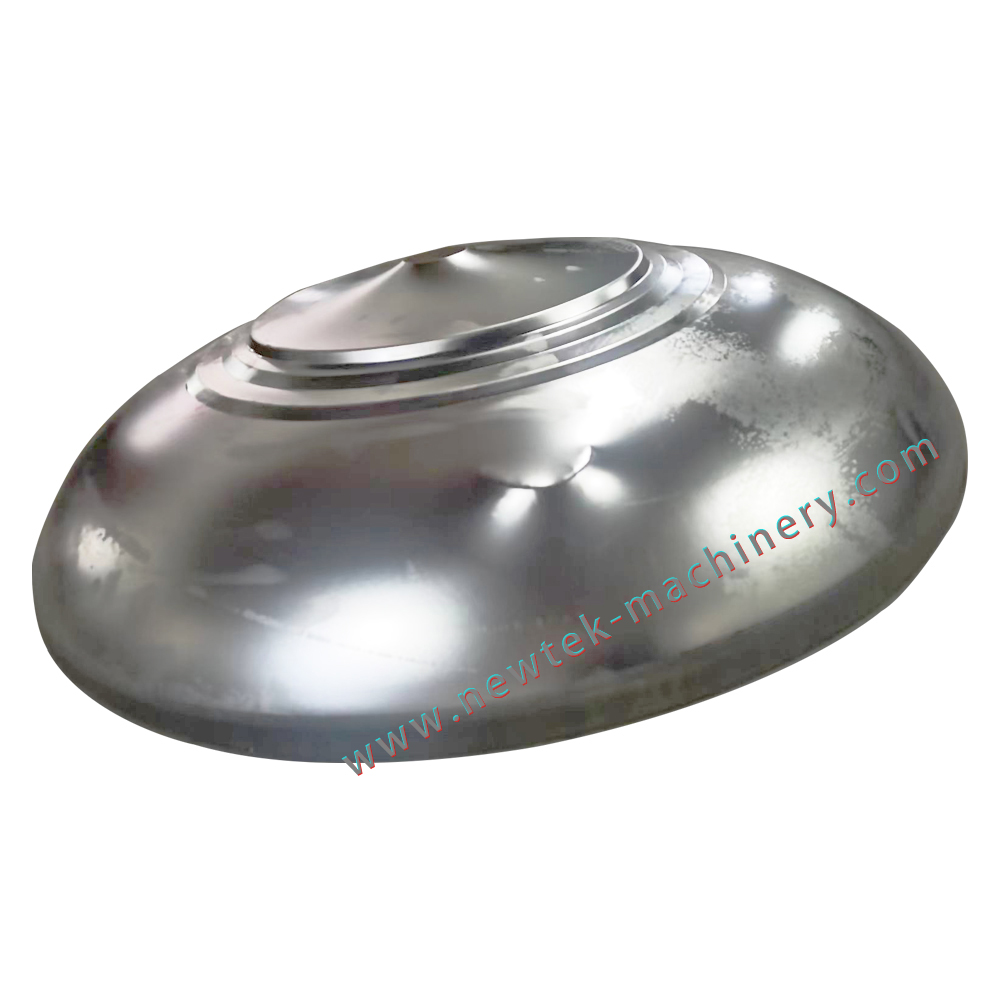

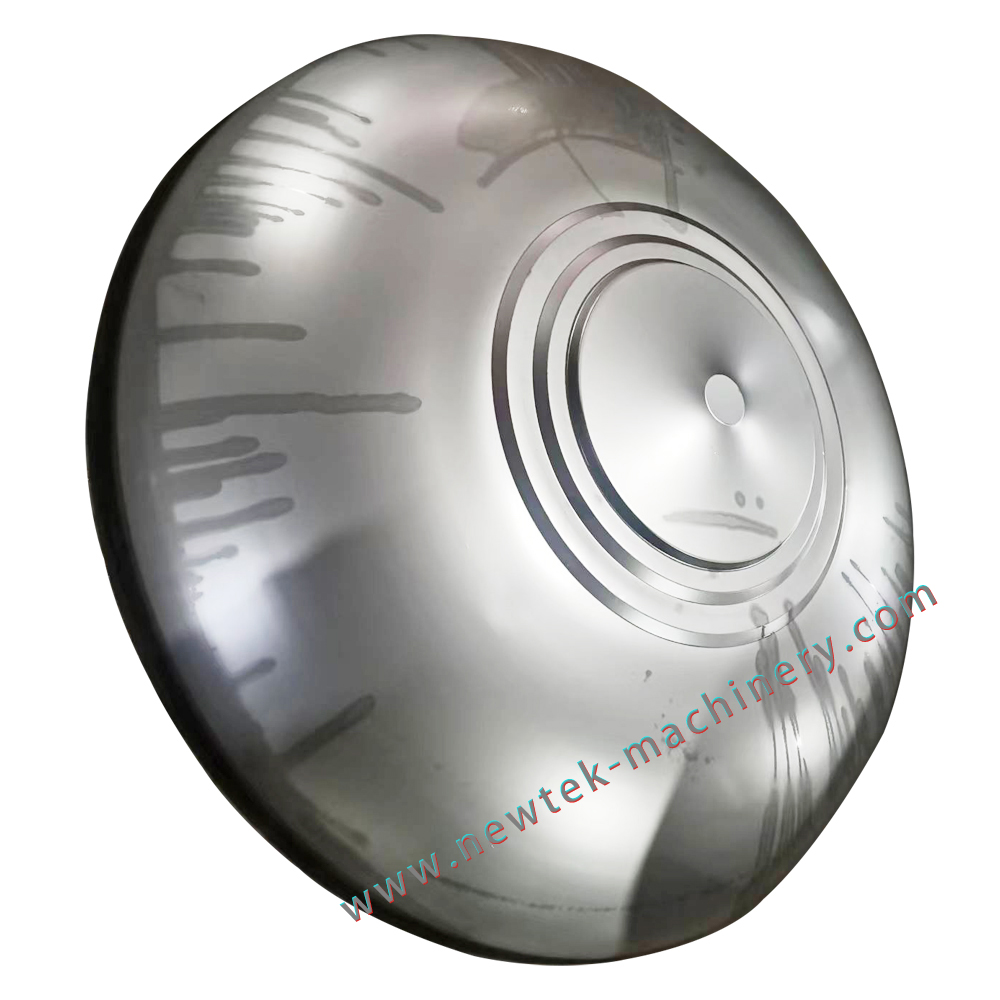

(5) How do 304 BA stainles steel water tank covers and 304-2B ones look

stainless steel 304-BA tank covers

stainless steel 304-2B tank covers

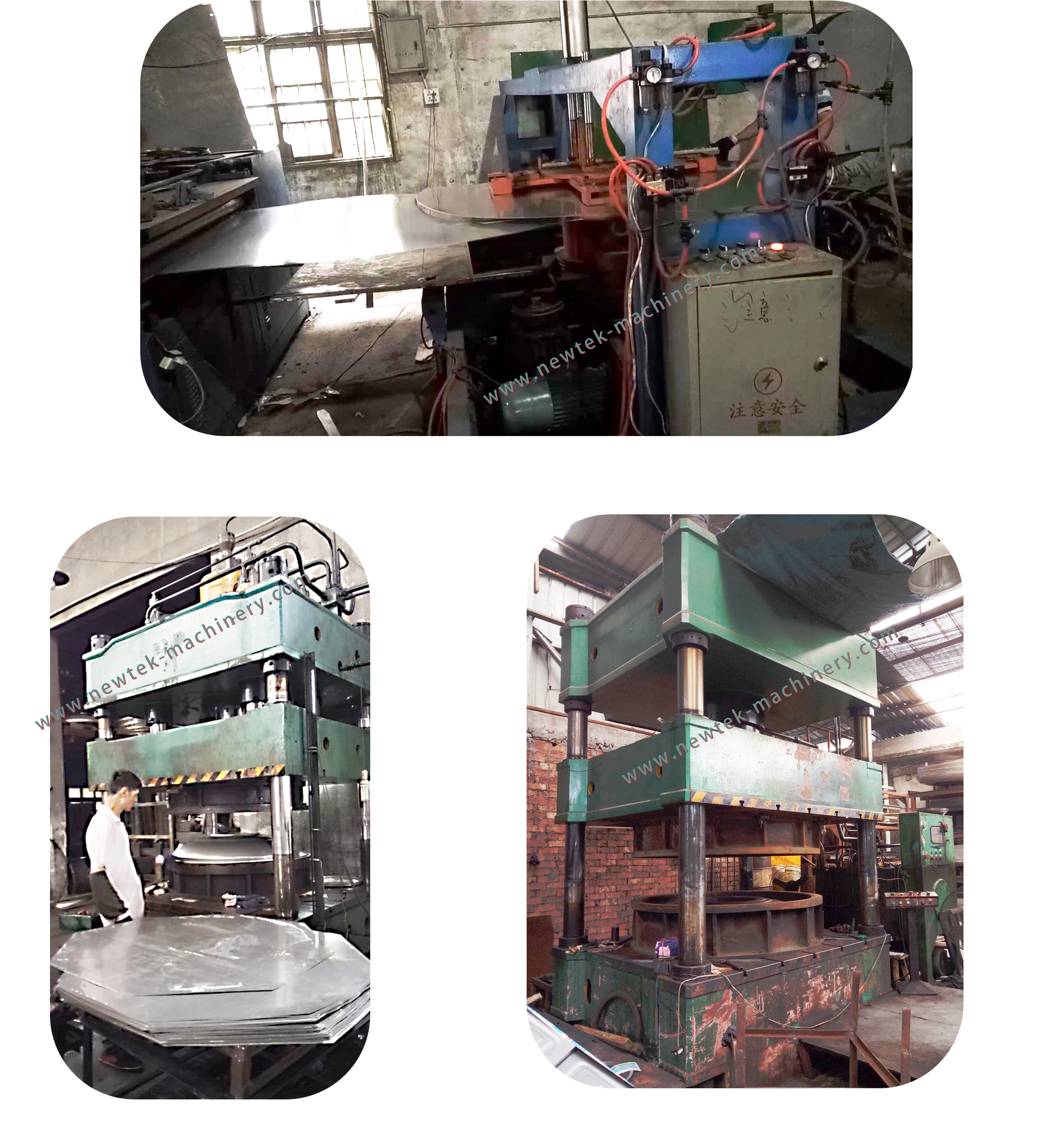

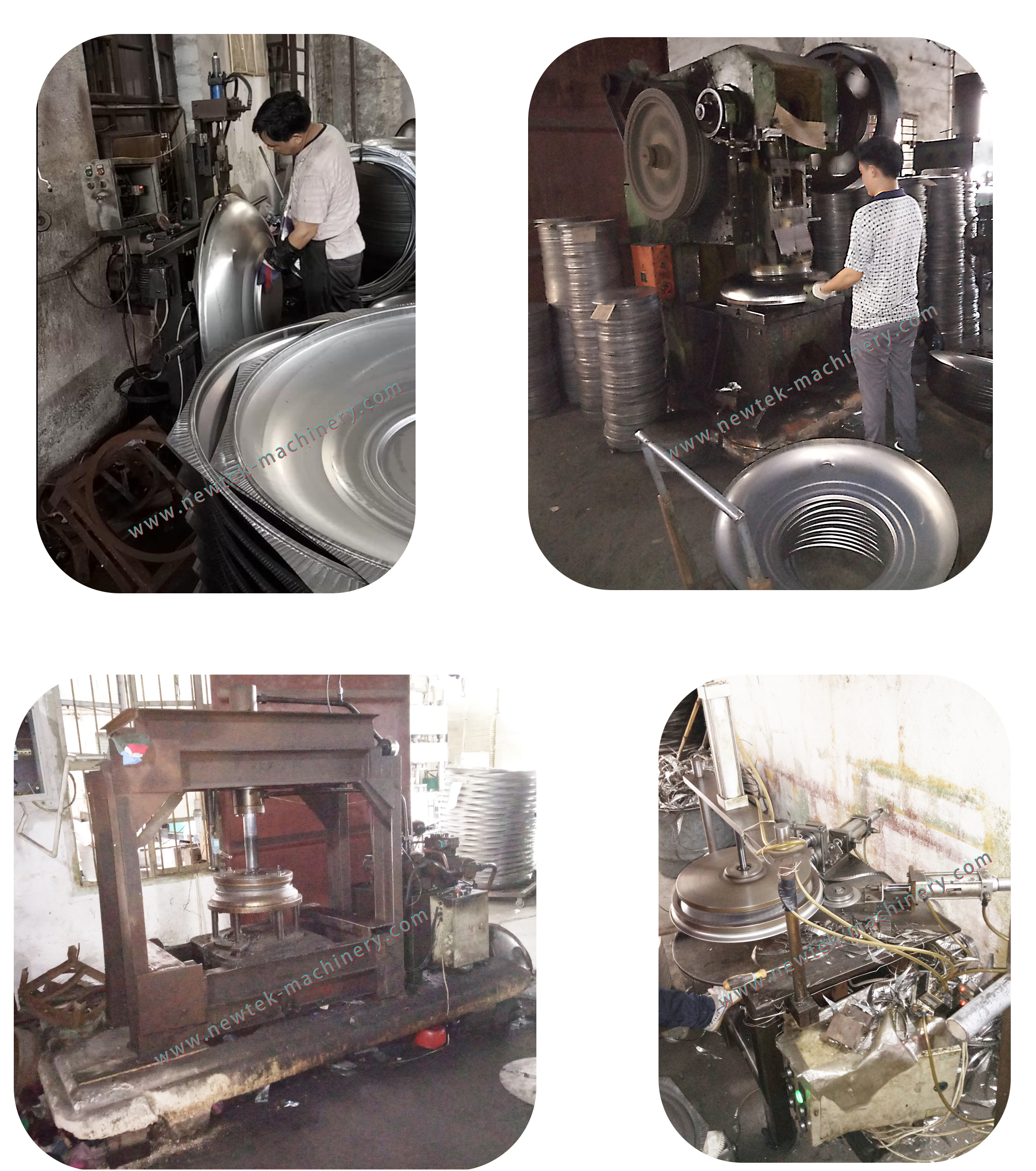

    2. Our production facilities for Vertical Stainless Steel Water Tank Covers
