180 KVA Stainless Steel Water Tank Welding Machines with/without Inverter Controller
1. Specification of 180 KVA Stainless Steel Water Tank Welding Machines with/without Inverter Controller
|
Rated power |
180KVA |
|
Voltage |
380 V, 50 HZ, 415 V, 50 HZ or customization |
|
Welding thickness |
1 mm+1 mm thick stainless steel |
|
Welding diameters |
680 mm – 2300 mm |
|
Arm length |
1800 mm |
|
Dimensions |
2400 mm * 800 mm * 3300 mm |
|
Weight |
1010 KGS |
|
Welding heads |
Both for linear & circular welding |
2.Characteristics of 180 KVA Stainless Steel Water Tank Welding Machines with Inverter Controller
⑴ It requires a small power of transformer and save at least 30% power consumption.
|
Machines |
Input currents |
Output currents |
Power supply needed |
Remark |
|
welding machine with inverter |
20 (3 phases) |
120 |
20 |
It saves at least 30% electricity.3 pcs 16mm2 for live wire & 1 pc 3 mm2 for null wire |
|
welding machine without inverter |
120 (3 phase) |
120 |
60 |
It affects other machines in the same power grid. 3 pcs 35mm2 for live wire & 1 pc 4 mm2 for null wire |
⑵ Function for 3 or more layers overlaps
The above welding includes DC one and AC one. The first sector is for 3 layers or more overlaps. The DC welding time can be set.
When making the stainless steel water tanks, please start at the overlap.
(3) It still can run well under unstable voltage and it doesn't affect other machines in the same grid.
3. Close look of 180 KVA Stainless Steel Water Tank Welding Machines

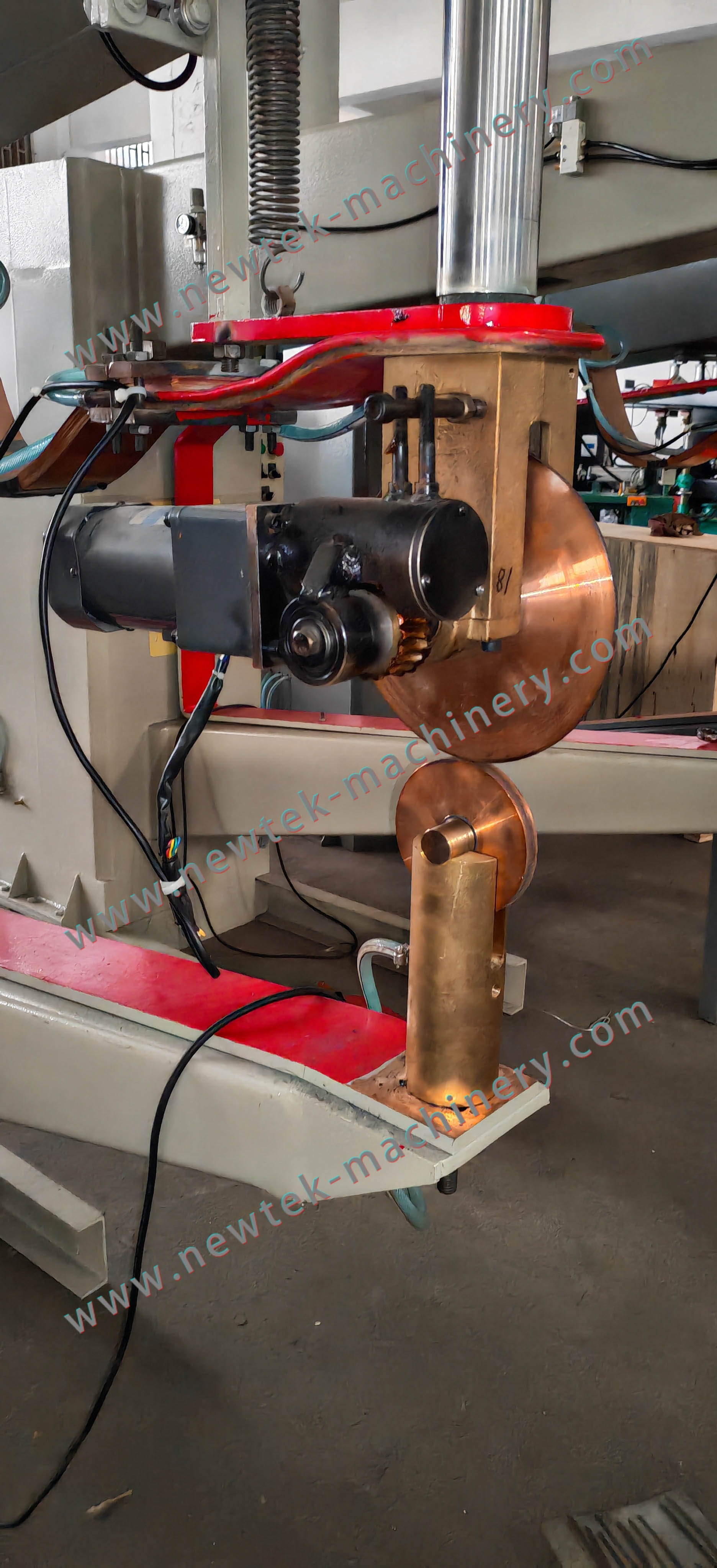

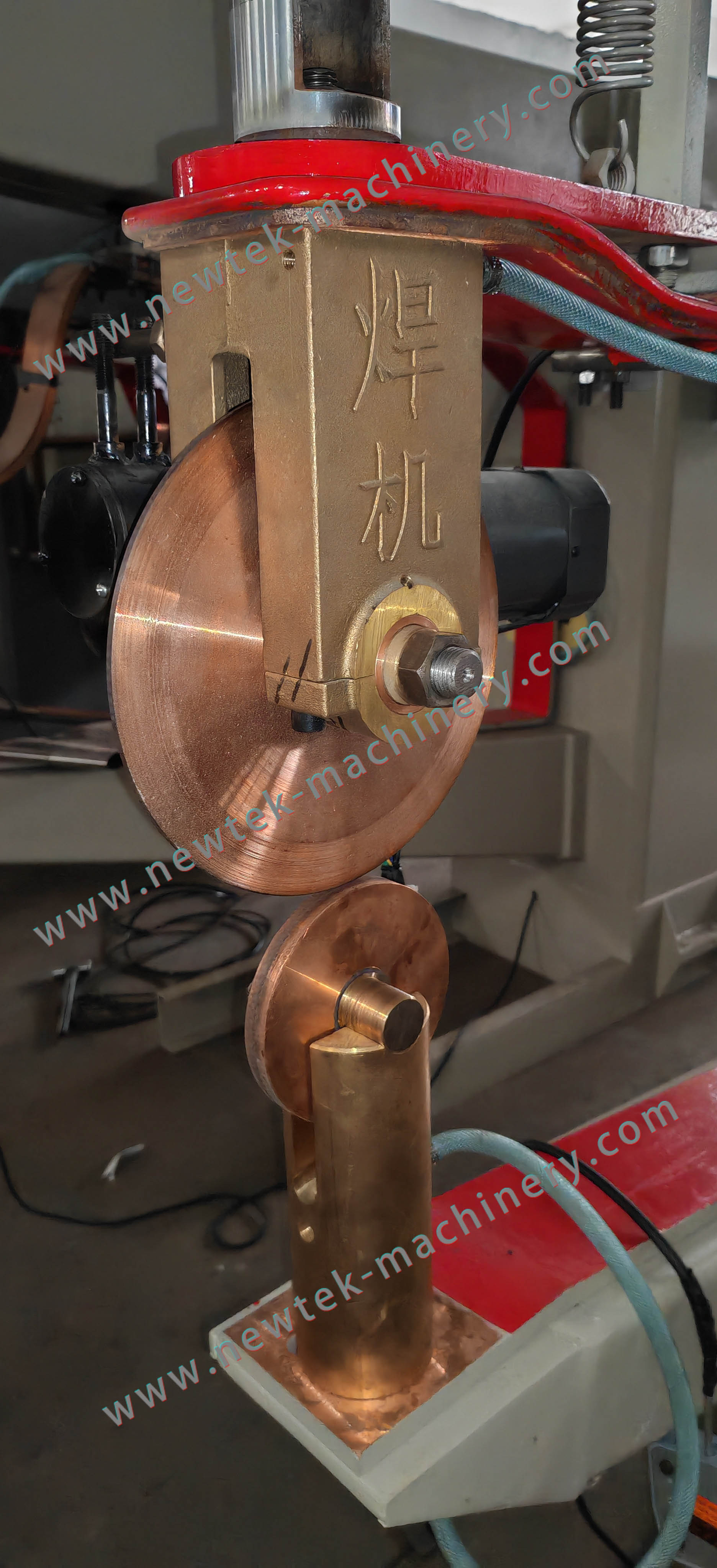

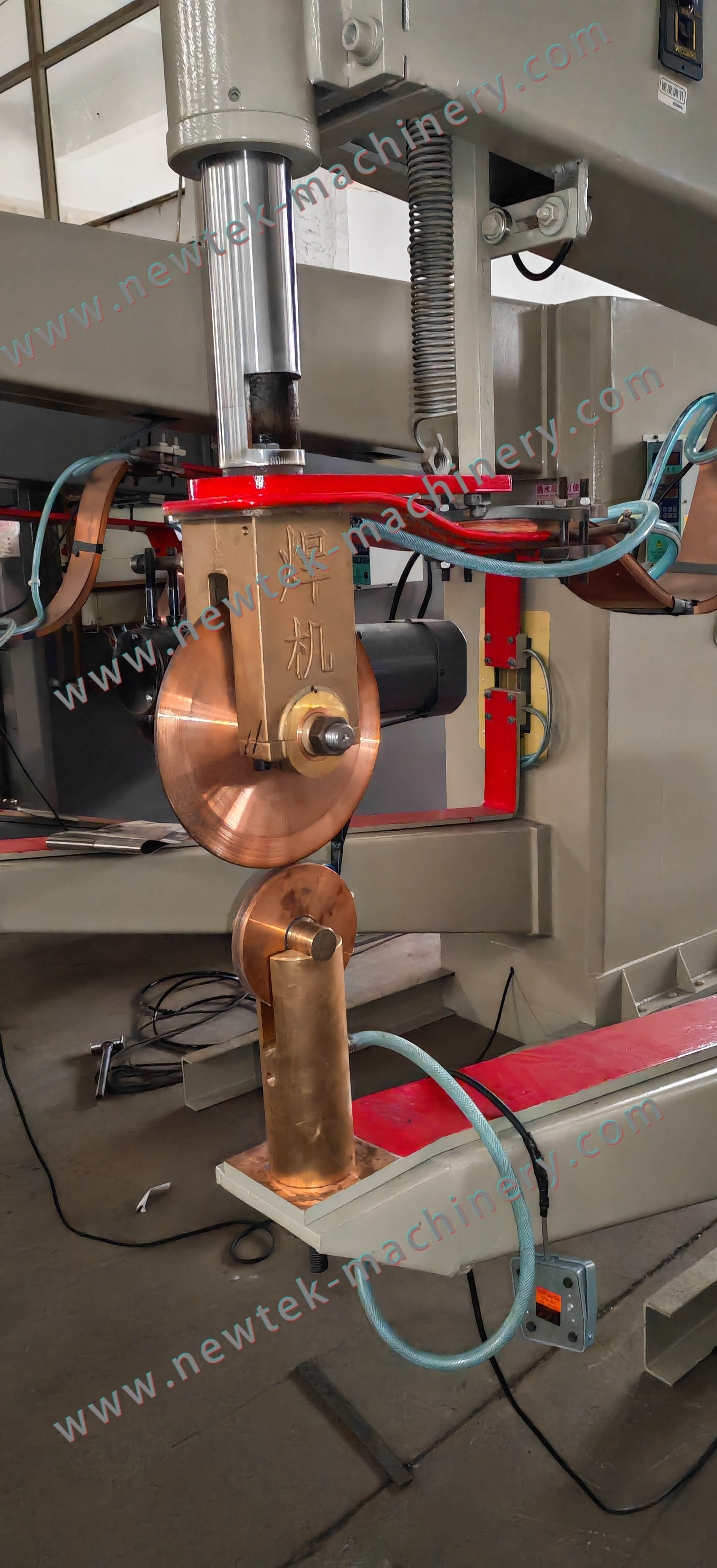

Chrome copper wheels of 180 KVA seam welding machines for stainless steel tank making

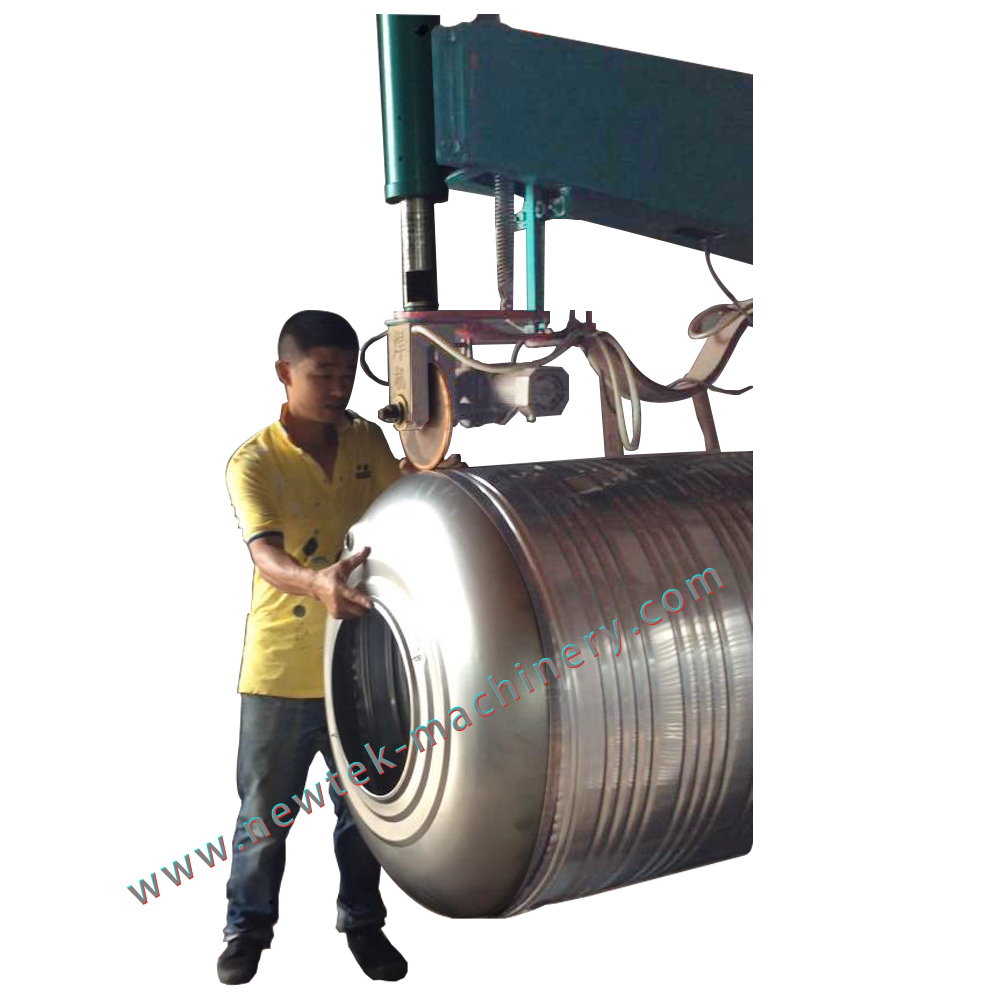

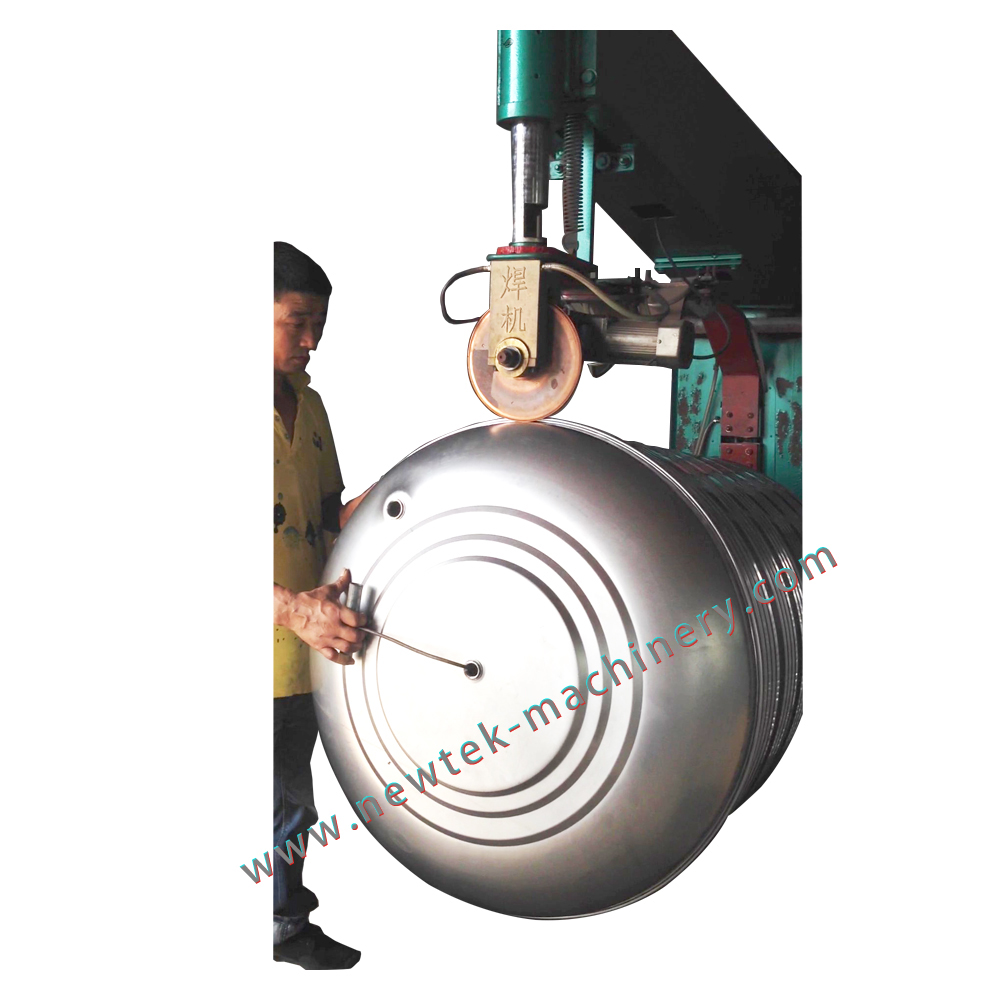

The direction of welding wheels can be changed to take both linear & circular seam welding
The welding wheels get balanced forces, and its shafts have much longer lifespan. The replacement costs less because of much smaller parts.

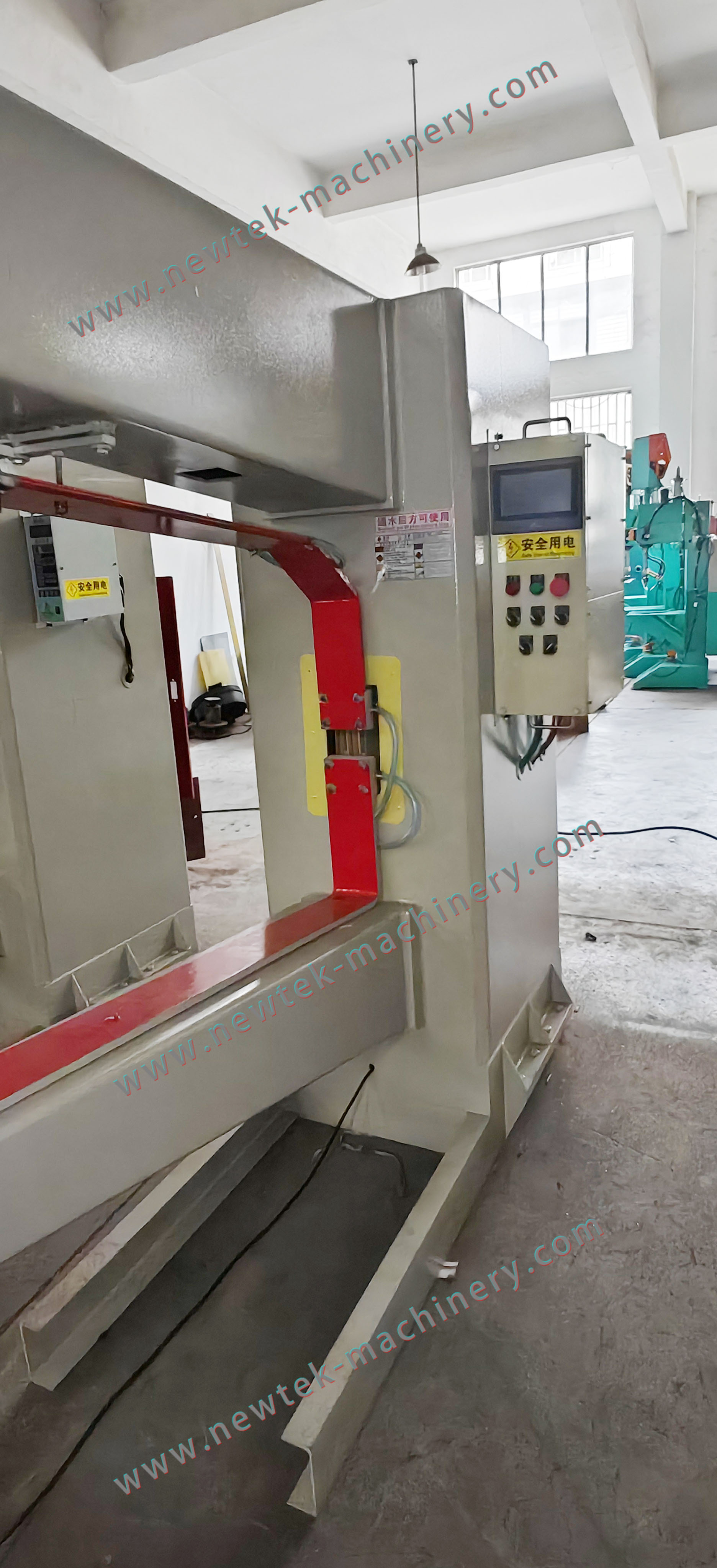

Inverter controller of 180 kva seam welding machines with touch screen.

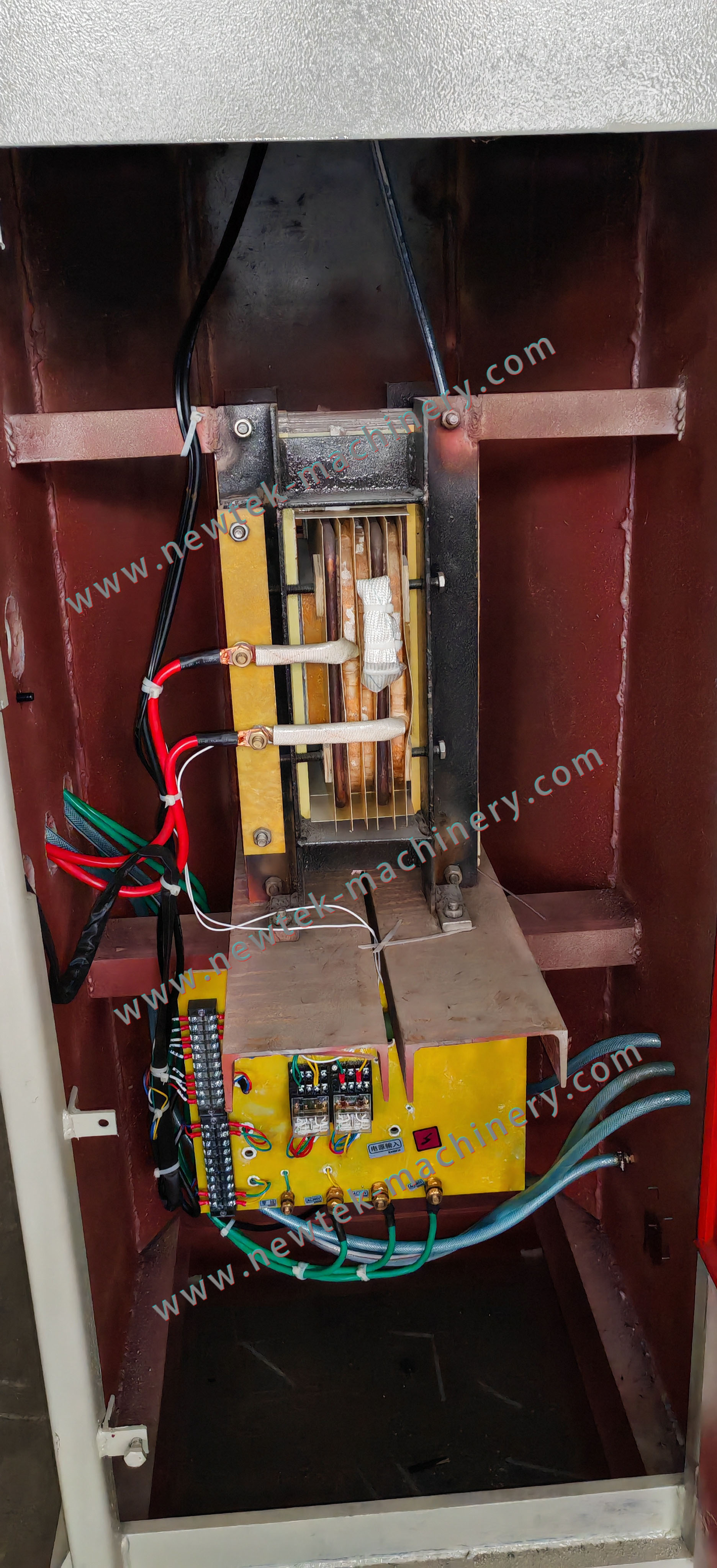

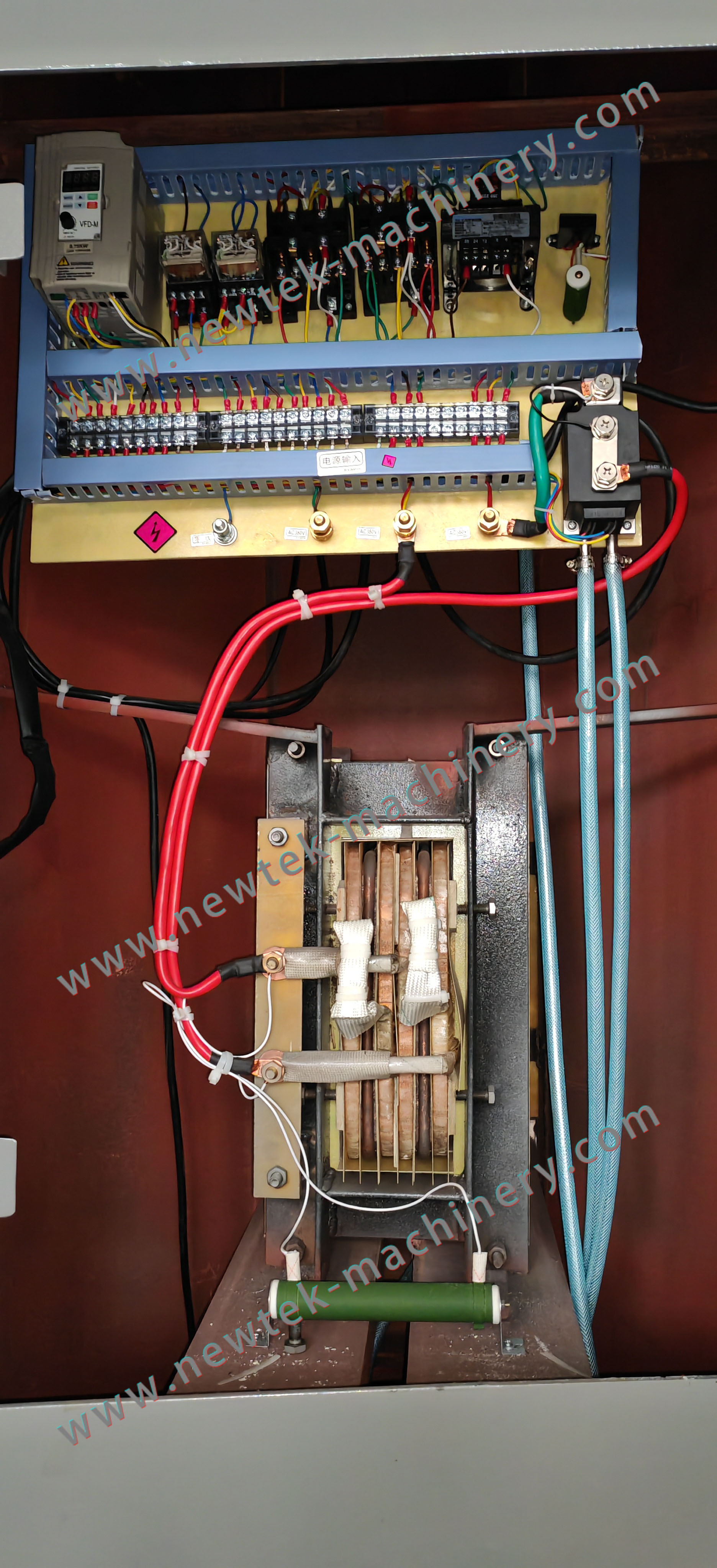

Full copper transformers and the power is 3 phases 4 wires, easy to connect

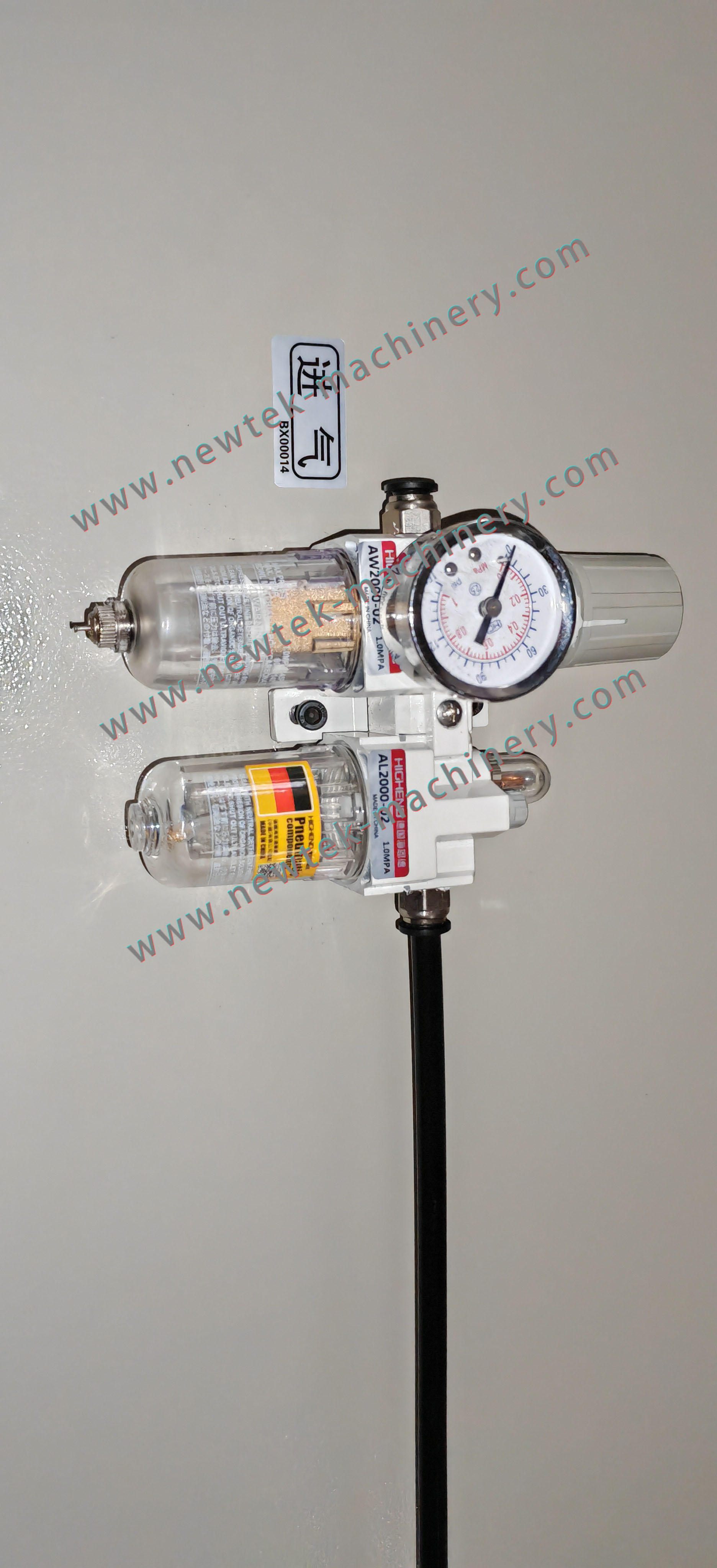

Decantor of 180 kva seam welding machines

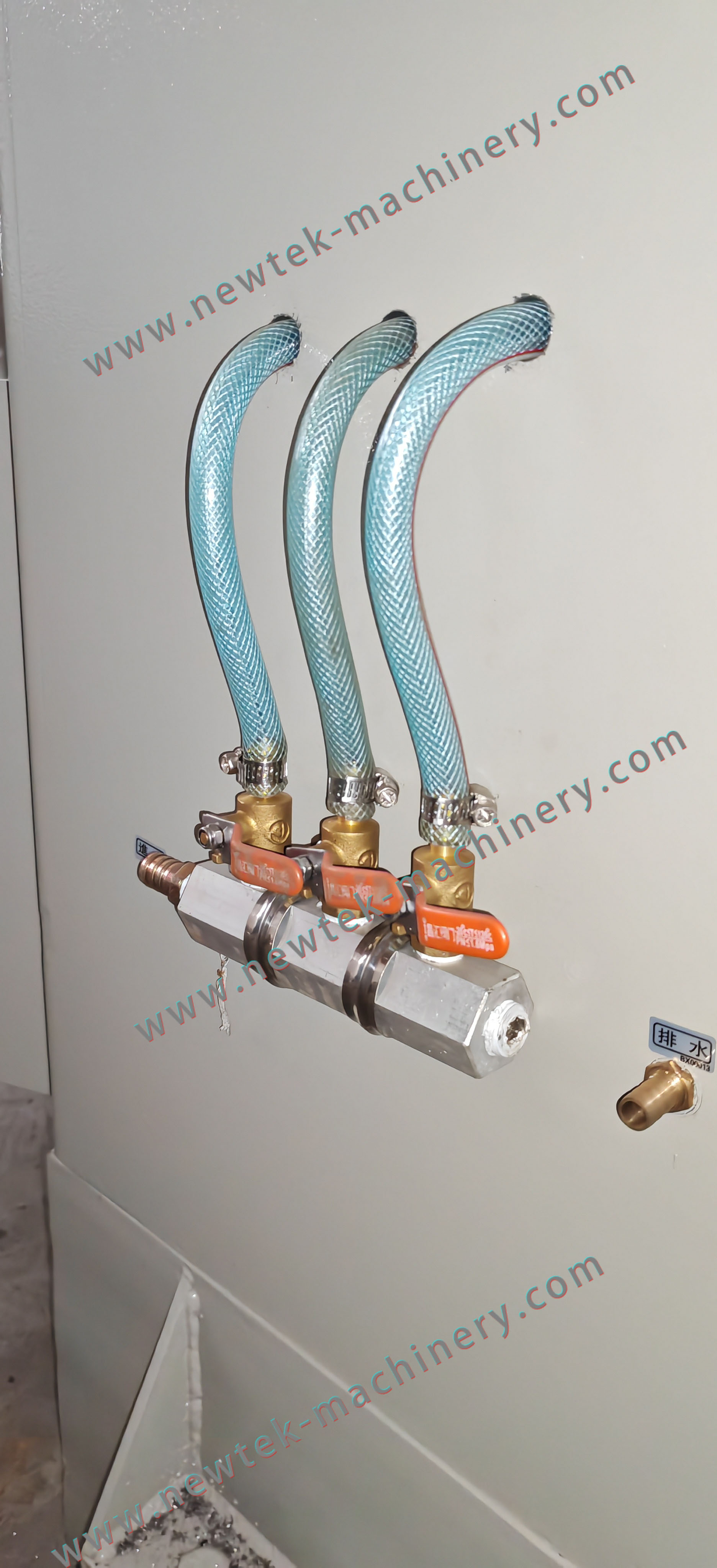

The connections for cooling water
-
